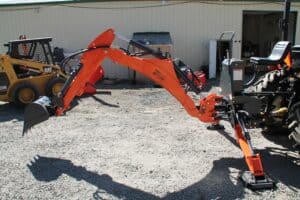

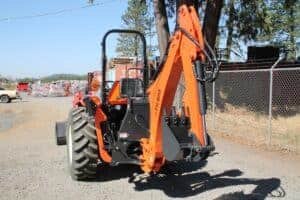

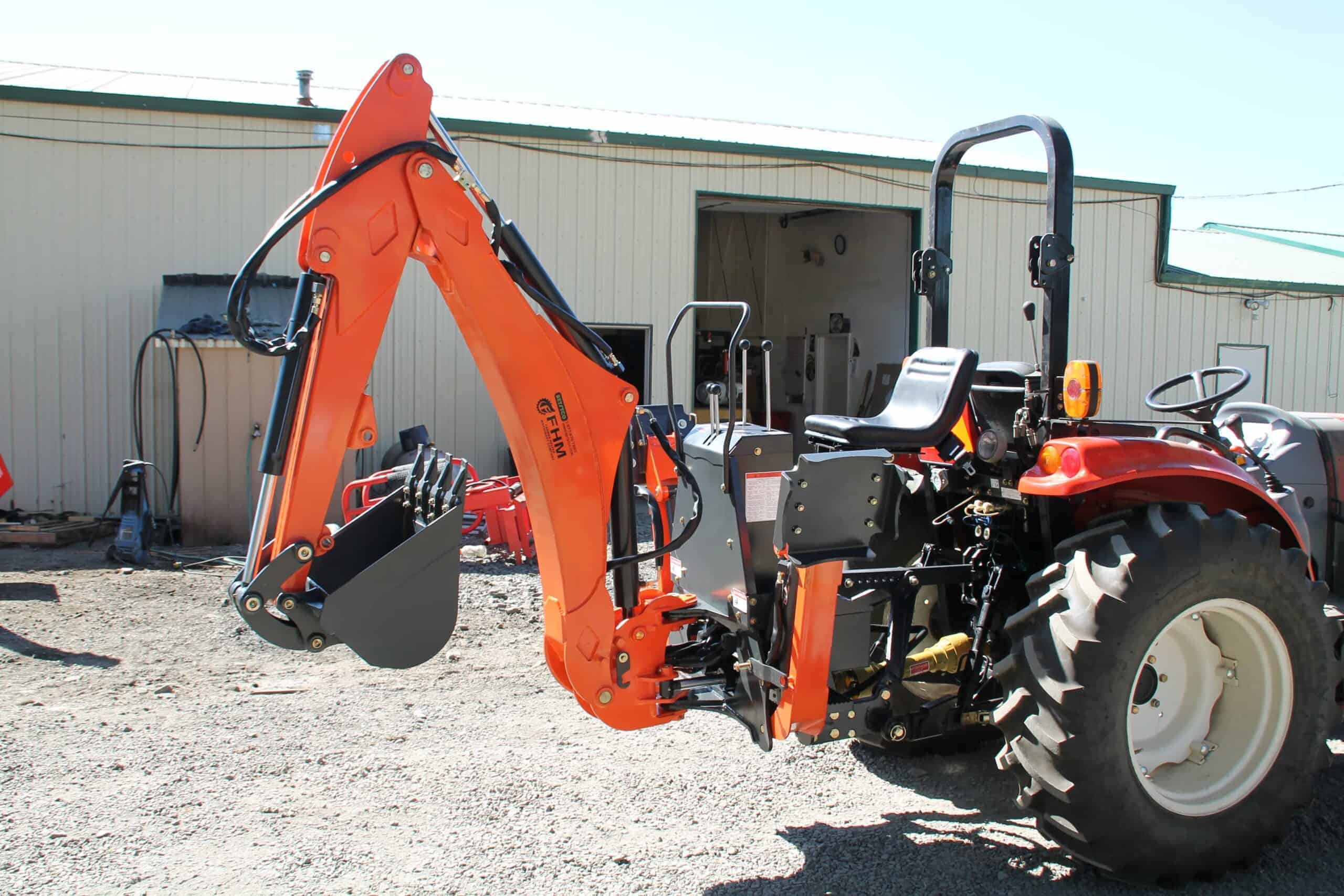

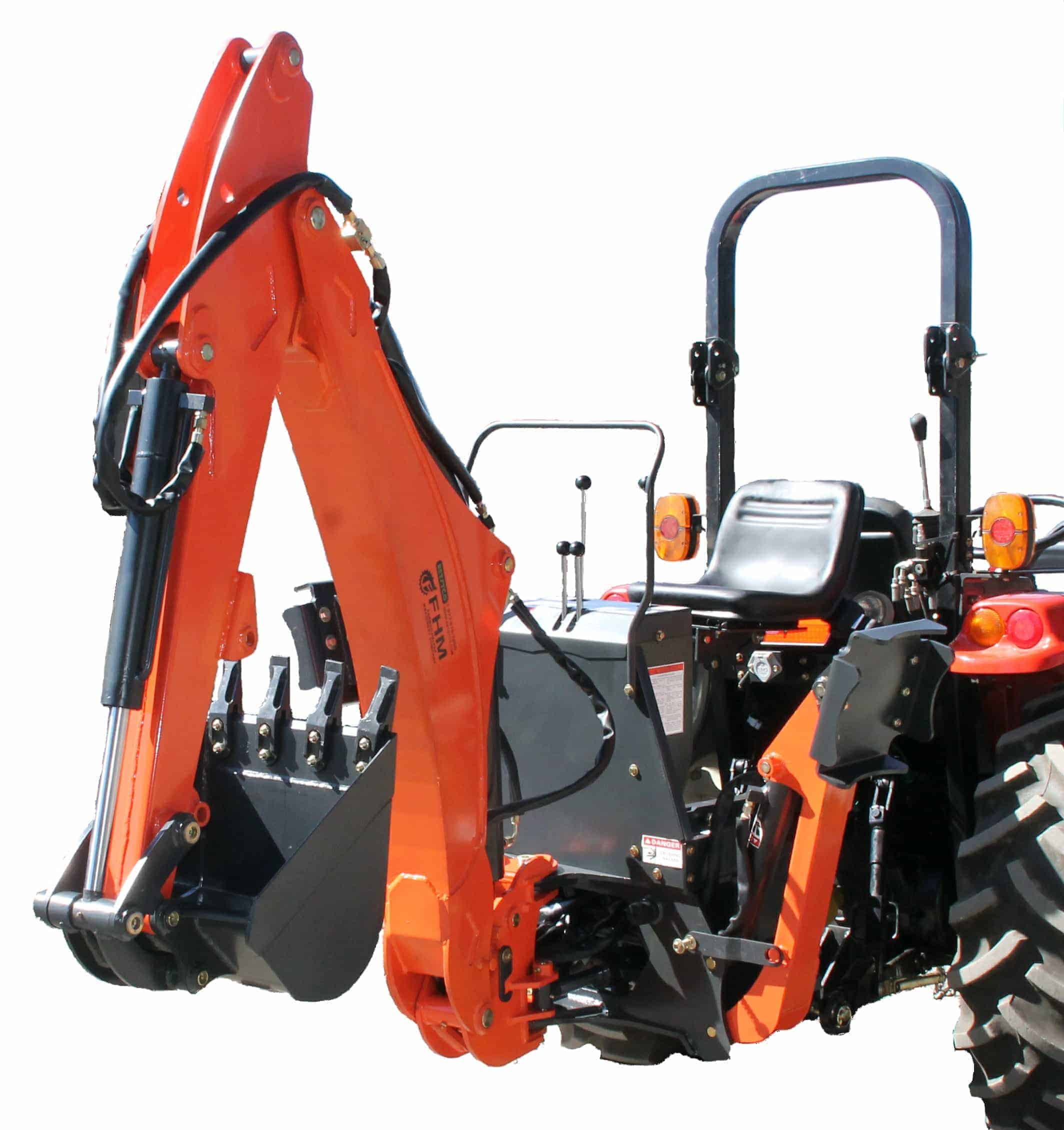

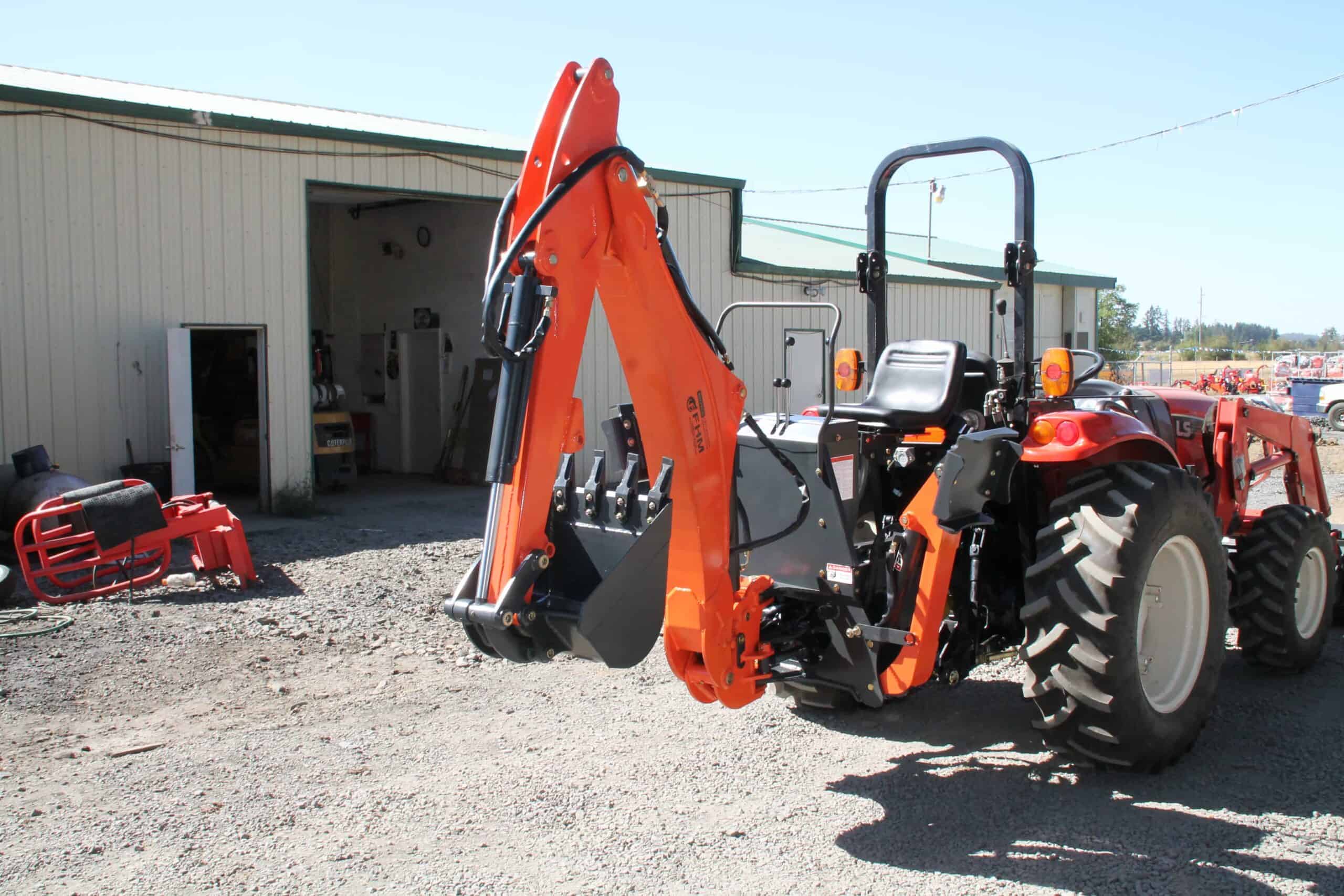

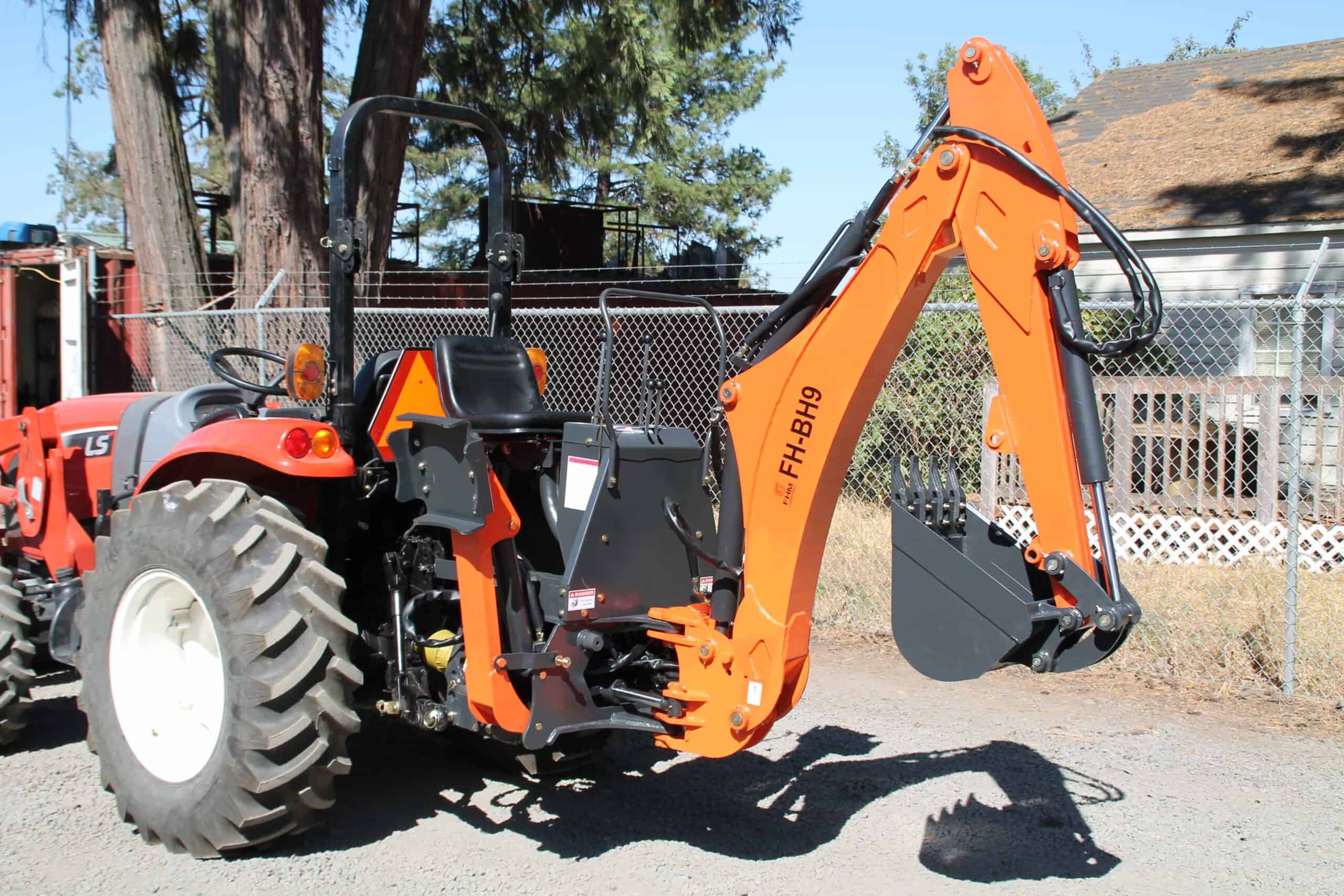

FH-BH8 & 9 Self Contained Backhoe

SKU: FH-BH8, FH-BH9

Assembly Video:

find your tractors pto hp here

2 year warranty with optional 4 years

powered by pto power

Powered By:

Tractor PTO
25 – 45+ HP

Select Unit Below to Purchase

Description for backhoe:

The FH backhoes enable you to tackle any kind of job with confidence. They have advanced features like a fully self-contained hydraulic system with a dual filter system. Hydraulic systems are powered by your tractor’s PTO, 4th point top link stabilization system, responsive 4-way controls with exceptional feathering, hydraulic stabilizer, transport lock and a variety of heavy-duty bucket sizes up to 36” in width.

Key Features:

  • Trenching up to 102” deep
  • Two-lever hydraulic controls
  • Rigid 4th point mounting eliminates the need for the frame mount
  • Hydraulic stabilizers
  • Transport lock
  • Optional Mechanical thumb
  • Variety of bucket sizes
  • Built using Q-235 structural steel
  • High-quality components
  • The Farmer-Helper (FH) backhoes are built strong and feature heavy lift and major digging capacity.
  • Additional bucket sizes, (subject to availability).

Specifications for backhoe:

SpecFH-BH8FH-BH9
Recommended Tract 3-point lift at end1575 lbs+1700 lbs+
3-point LinkageCat-I or Cat-IICat-I or Cat-II
Digging Depth (2 foot flat bottom trench)89.7”102”
Reach (From center of swing Pivot)126”142”
Loading Height (Bucket at 60 degrees)72.4”80.3”
Transport Height (maximum)83.5”92.9”
Transport Overhang49”50.4”
Bucket rotation180°180°
Stabilizer Spread (Down Postion)68.7”68.7”
Stabilizer Spread (Up Position)46.4”46.4”
Dipperstick Digging Force2,105 lbs2,205 lbs
Bucket Digging Force2,818 lbs.3,418 lbs.
Swing Arc180°180°
Operating Pressure2,466 psi2,466 psi
Shipping Weight1,450 lbs1,540 lbs
Net Weight (16” Bucket)1,360 lbs1,450 lbs
