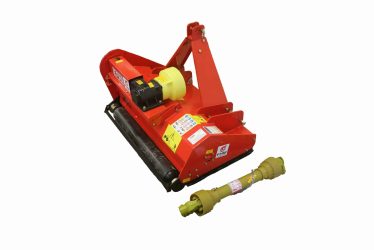

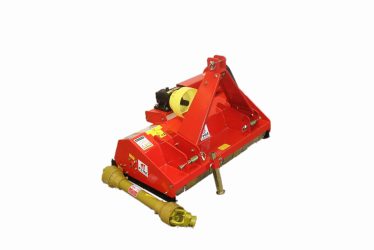

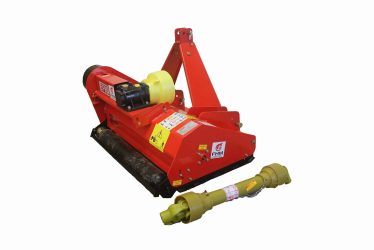

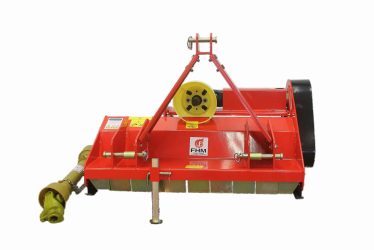

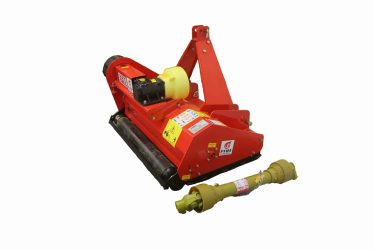

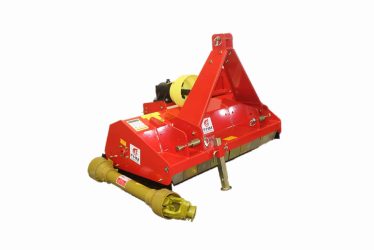

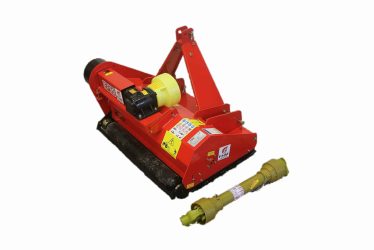

FH-EF Standard Duty Flail MOWER
Powered By:
Tractor PTO
14- 45 HP
Working Width
33″ – 68″
Comes with Y-Blades
Optional Mulch Blade
Suitable for:
Tall / Medium Grass
Playlist
-
-5%33″ Standard Duty Flail Mower, FH-EF85
Sale 5%Original price was: $1,548.00.$1,470.60Current price is: $1,470.60.10 in stock now!
Add to cart -

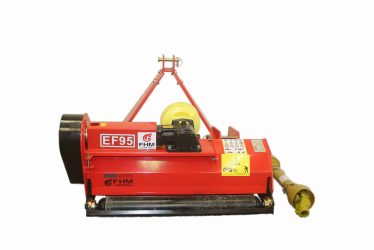

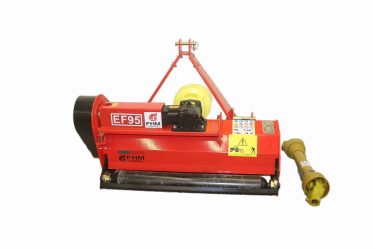

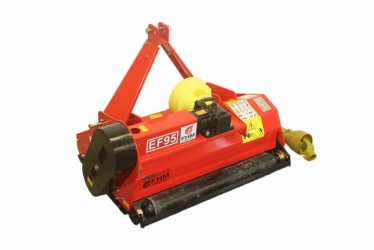

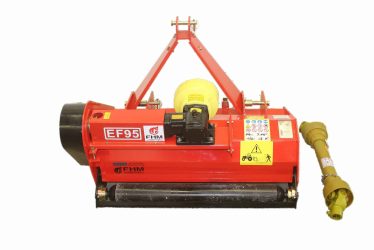

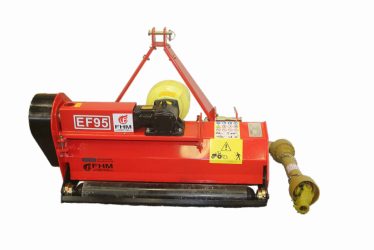

-5%37″ FH-EF95, Standard Duty Flail Mower
Sale 5%Original price was: $1,643.00.$1,560.85Current price is: $1,560.85.10 in stock
Add to cart -
-5%41″ Standard Duty Flail Mower, FH-EF105
Sale 5%Original price was: $1,730.00.$1,643.50Current price is: $1,643.50.12 in stock
Add to cart -
-5%48″ Standard Duty Flail Mower, FH-EF125
Sale 5%Original price was: $1,820.00.$1,729.00Current price is: $1,729.00.15 in stock
Add to cart -
-5%53″ Standard Duty Flail Mower, FH-EF135
Sale 5%Original price was: $1,858.00.$1,765.10Current price is: $1,765.10.9 in stock
Add to cart -
-5%60″ Standard Duty Flail Mower, FH-EF155
Sale 5%Original price was: $1,902.00.$1,806.90Current price is: $1,806.90.Out of stock
Sorry but this currently isn't in stock -
-5%68″ Standard Duty Flail Mower, FH-EF175
Sale 5%Original price was: $2,151.00.$2,043.45Current price is: $2,043.45.21 in stock
Add to cart
Who is Farmer-Helper?
Farmer Helper Machinery Co., Ltd (FHM) was established in 2009. The factory area is more than 20,000 square meters and houses 4 Metal laser cutting machines and more than 80 processing machines.
FHM manufactures a full range of high-quality implements for small to medium-sized tractor owners across the world. Farmer’s Helper has become an integral manufacturing premise for agricultural machines. Our team’s priority is customer success and satisfaction. We constantly improve our machines to meet customer demands and expectations.
Key Features:
Each blade mount holds two blades that make a Y shape and overlap to create a finished look on the pasture that is being mowed. Blades are reversable and are made of Forged Steel and are tough enough to deflect rock. Spacers keep the blades centered on the blade mount.
These machines have multiple drive belts to ensure a smooth transfer of power from the gearbox to the blade shaft to maintain speed and eliminate damaging vibration.
This machine is compatible with Category 1 tractor’s 3-point hitch.
The PTO shaft is included with purchase of machine. These machines come with an 80cm (31.5 inch) PTO shaft fully collapsed. Shear bolt size depends on mower size. EF85 up to EF135 comes with a Series 04 PTO shaft, shear bolt is 5/16 bolt, 2.5 inches long, Grade 5. EF155 and larger comes with a Series 05 PTO shaft, shear bolt is 3/8 bolt, 2.5 inches long, Grade 5.
5 positions on housing, 4 positions on roller bracket for cutting height adjustment settings, and 3 positions on the side skids. You can adjust the height and angle of the mower.
These precision balanced rotors will spin at high speeds without causing a damaging vibration that causes unnecessary wear on the bearings and seals.
Powder coating provides a durable, long-lasting finish that protects against rust, corrosion, and wear. This high-quality coating enhances the mower’s resistance to harsh weather, moisture, and debris, ensuring longevity even in demanding agricultural and landscaping environments. Additionally, the smooth, tough surface reduces maintenance needs and helps maintain the mower’s professional appearance over time.
Each flail has two positions for mounting the gearbox. You can set your machine to be slightly more or less offset. Offset distance determined by size of mower.
A 2000 RPM rotor provides a balance between cutting efficiency and durability. At this speed, the rotor generates high centrifugal force, ensuring the flail blades cut through grass, weeds, and light brush cleanly and effectively. The consistent rotation speed also reduces vibration and wear on the mower, leading to smoother operation and extended equipment lifespan. Additionally, a 2000 RPM rotor helps maintain efficiency without excessive power consumption, making it suitable for various mowing applications, from pastures to roadside maintenance.
Experience the ultimate in lawn care with the Farmer-Helper EF Series (Light Duty) Flail Mower – the new standard for lawn maintenance! Rid yourself of clumpy, unpleasant cuts and instead enjoy a glossy, professional appearance every time. Carefully engineered to subdue weeds, grass, brush, and small saplings, the flail mower is a staple for small fields of up to 10 acres.
No more will undulating ground and high grasses stand between you and a tidy manicured lawn. The unique flail mower technology offers pin-point cutting leaving behind neatly shredded grass clippings and protecting against the threat of flying trash. This places the Farmer-Helper Flail Mower at the top position for mowing highways and park maintenance.
Elevate your lawn care experience with the Farmer-Helper Flail Mower today! Transform your property into a stunning display and reap the rewards of professional-grade lawn care. Don’t wait – upgrade your lawn care kit now and discover the difference a top-of-the-line flail mower can make!
Details:
Overall Width: The Farmer-Helper EF series has an overall width of 37″ to 72″ depending on the size of the unit.
Cutting Width: The Farmer-Helper EF series has a tilling width of 33″ to 68″ depending on the size of the unit.
Weight: The Farmer-Helper EF series has a weight of 301 lbs to 550 lbs depending on the size of the unit.
HP Requirements at PTO: The Farmer-Helper EF series requires 14 – 45 PTO horsepower depending on the size of the unit.
Cutting Height: The Farmer-Helper EF series has a 0″ – 6″ Adjustable to meet various height requirements
Housing Material Thickness: The Farmer-Helper EF series has a housing of 3mm thick.
Blade Type: The Farmer-Helper EF series uses standard reversible Y-blades. The Y-blades weighs 5.6 oz.
Number of Blades: The Farmer-Helper EF series uses 30 – 60 Y-blades, depending on the size of the unit.
Precision Blade Overlap: On the Farmer-Helper EF series the blades are staggered precisely with no gap in the mowing area. Blade overlap is important to achieve an even cutting result.
Rotor Rotation – Reverse: The rotor spins in the opposite direction as the wheels of the tractor when traveling forward. This allows the blades to shear the material as it is folded forward by the mowers. The material is then thrown up and over the rotor.
Rotor Tube Diameter: 3″- Heavy-duty steel tubing for long life.
Balanced Rotor Tube: The rotor tube is balanced to reduce vibration and ensures that the mower runs smooth, and reduces wear on the bearings.
Hitch Type: Category 1 standard 3-point.
Offset From Center Mount: This feature allows for an offset from the center to the right of the tractor. This feature is helpful for mowing around fences, buildings; walkways, etc. From the center of the PTO, the mower extends 14 1/2″ to 44 3/4″ depending on the size of the unit.
Drive Belts: The Farmer-Helper EF series uses 2 – 4 belts, depending on the size of the unit.
Gearbox Rating: Up to 45 hp. Heavy-duty proved oil bath gearbox for long life.
Driveline / PTO Shaft: Shear Bolt PTO Shaft for Standard 1-3/8” 6-Spline PTO
Finish: Baked-on powder coat, powder coat is superior to paint.
Support Before and After the Sale: At Betstco our service department is staffed with professional technicians that inspect each machine before it is shipped. This ensures that you get a trouble-free machine from the get-go. When you need technical help or parts, our courteous staff can help you get what you need from our fully stocked warehouse. We keep a full line of replacement parts, and we can ship parts within 24 hours.
| Spec | FH-EF85 |
| Working Width | 33” |
| Overall Width | 37” |
| Min. HP Req. | 14 HP |
| Hitch | Cat I |
| Gear Box Rating | 45 HP |
| Distance Right of Center Mount | 14.5 Inches or 18.75 inches |
| Grass Blades | 24 Blades |
| Optl Mulch Blades | 12 Hammer Blades |
| Housing Thickness | 3mm |
| Rotor Dia. | 3” |
| No. of Belts | 2 |
| 3pt Conn. Width Driveline Type | 19 3/4” – 27 1/2” Series 4 1-3/8” SPL w/QD x 1-3/8” SPL w/ Shear Bolt |
| Weight | 301 lbs |
| Crated Weight | 336 lbs |
| Spec | FH-EF95 |
| Working Width | 37” |
| Overall Width | 41” |
| Min. HP Req. | 15 HP |
| Hitch | Cat I |
| Gear Box Rating | 45 HP |
| Distance Right of Center Mount | 16.87 Inches or 21.12 inches |
| Grass Blades | 36 Blades |
| Optl Mulch Blades | 18 Hammer Blades |
| Housing Thickness | 3mm |
| Rotor Dia. | 3” |
| No. of Belts | 2 |
| 3pt Conn. Width Driveline Type | 19 3/4” – 27 1/2” Series 4 1-3/8” SPL w/QD x 1-3/8” SPL w/ Shear Bolt |
| Weight | 325 lbs |
| Crated Weight | 360 lbs |
| Spec | FH-EF105 |
| Working Width | 41” |
| Overall Width | 45” |
| Min. HP Req. | 16 HP |
| Hitch | Cat I |
| Gear Box Rating | 45 HP |
| Distance Right of Center Mount | 20.62 Inches or 24.87 inches |
| Grass Blades | 36 Blades |
| Optl Mulch Blades | 18 Hammer Blades |
| Housing Thickness | 3mm |
| Rotor Dia. | 3” |
| No. of Belts | 2 |
| 3pt Conn. Width Driveline Type | 19 3/4” – 27 1/2” Series 4 1-3/8” SPL w/QD x 1-3/8” SPL w/ Shear Bolt |
| Weight | 342 lbs |
| Crated Weight | 377 lbs |
| Spec | FH-EF125 |
| Working Width | 48” |
| Overall Width | 52” |
| Min. HP Req. | 20 HP |
| Hitch | Cat I |
| Gear Box Rating | 45 HP |
| Distance Right of Center Mount | 24.75 Inches or 29 inches |
| Grass Blades | 36 Blades |
| Optl Mulch Blades | 18 Hammer Blades |
| Housing Thickness | 3mm |
| Rotor Dia. | 3” |
| No. of Belts | 2 |
| 3pt Conn. Width Driveline Type | 19 3/4” – 27 1/2” Series 4 1-3/8” SPL w/QD x 1-3/8” SPL w/ Shear Bolt |
| Weight | 390 lbs |
| Crated Weight | 438 lbs |
| Spec | FH-EF135 |
| Working Width | 53” |
| Overall Width | 60” |
| Min. HP Req. | 22 HP |
| Hitch | Cat I |
| Gear Box Rating | 45 HP |
| Distance Right of Center Mount | 28.5 Inches or 32.25 inches |
| Grass Blades | 48 Blades |
| Optl Mulch Blades | 24 Hammer Blades |
| Housing Thickness | 3mm |
| Rotor Dia. | 3” |
| No. of Belts | 2 |
| 3pt Conn. Width Driveline Type | 19 3/4” – 27 1/2” Series 4 1-3/8” SPL w/QD x 1-3/8” SPL w/ Shear Bolt |
| Weight | 429 lbs |
| Crated Weight | 477 lbs |
| Spec | FH-EF155 |
| Working Width | 60” |
| Overall Width | 64” |
| Min. HP Req. | 24 HP |
| Hitch | Cat I |
| Gear Box Rating | 45 HP |
| Distance Right of Center Mount | 32.5 Inches or 36.75 inches |
| Grass Blades | 48 Blades |
| Optl Mulch Blades | 24 Hammer Blades |
| Housing Thickness | 3mm |
| Rotor Dia. | 3” |
| No. of Belts | 3 |
| 3pt Conn. Width Driveline Type | 19 3/4” – 27 1/2” Series 4 1-3/8” SPL w/QD x 1-3/8” SPL w/ Shear Bolt |
| Weight | 462 lbs |
| Crated Weight | 510 lbs |
| Spec | FH-EF175 |
| Working Width | 68” |
| Overall Width | 72” |
| Min. HP Req. | 28 HP |
| Hitch | Cat I |
| Gear Box Rating | 45 HP |
| Distance Right of Center Mount | 40.5 Inches or 44.75 inches |
| Grass Blades | 60 Blades |
| Optl Mulch Blades | 30 Hammer Blades |
| Housing Thickness | 3mm |
| Rotor Dia. | 3” |
| No. of Belts | 4 |
| 3pt Conn. Width Driveline Type | 19 3/4” – 27 1/2” Series 5 1-3/8” SPL w/QD x 1-3/8” SPL w/ Shear Bolt |
| Weight | 530 lbs |
| Crated Weight | 584 lbs |
