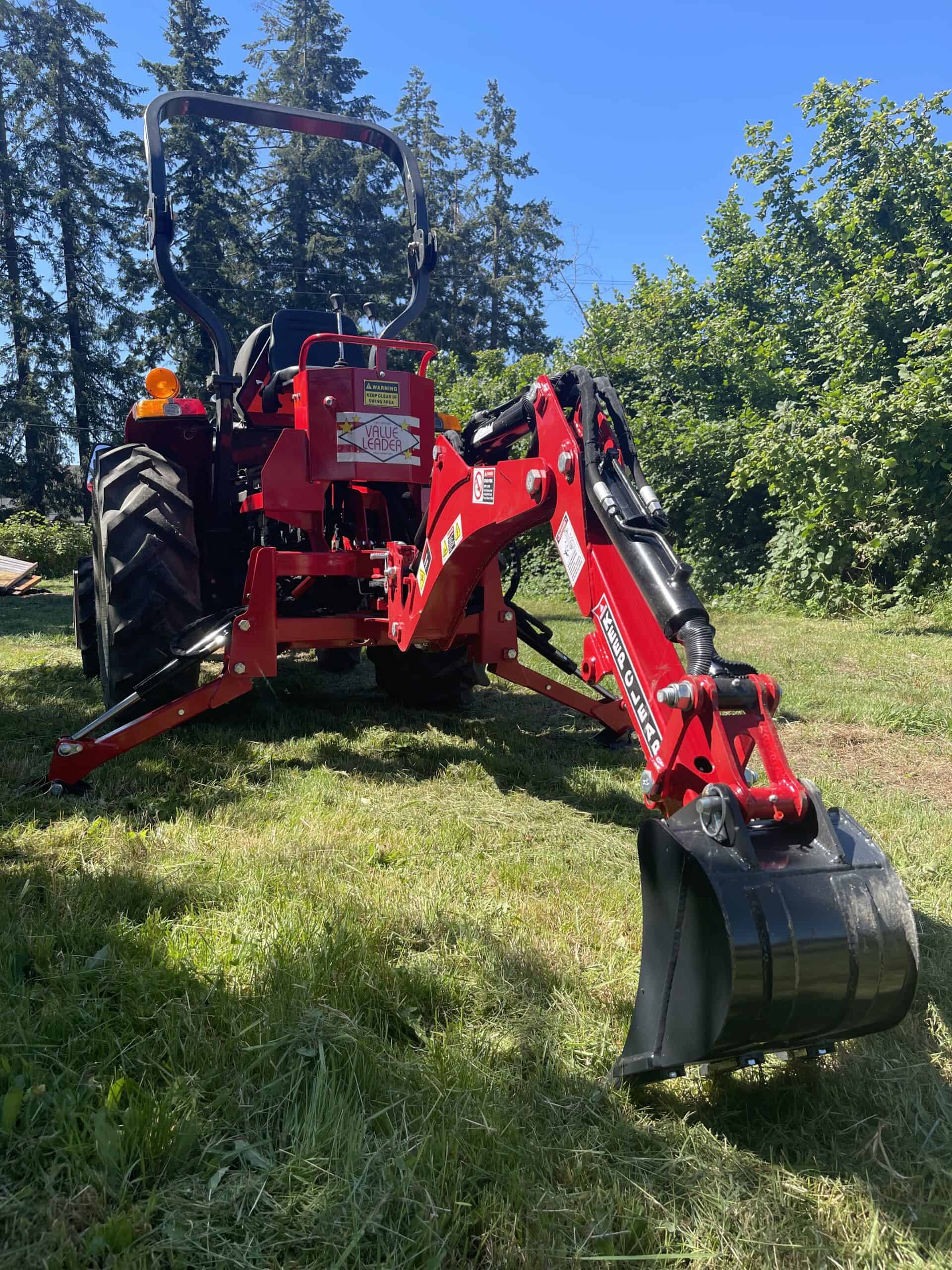

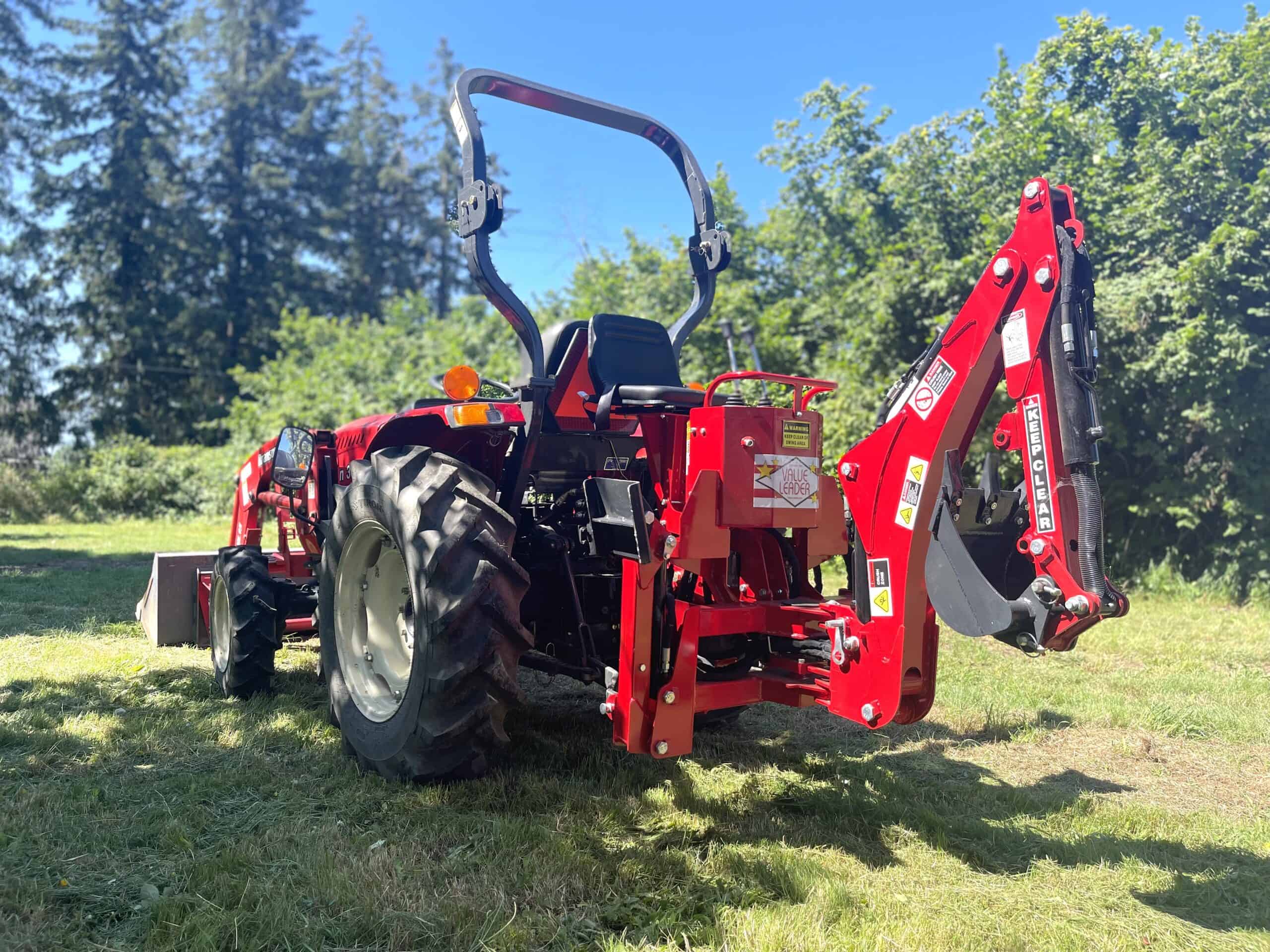

Value-Leader VL-BHMD Direct Connect Backhoe
SKU: VL-BHM5D
Powered By:
POWERED BY TRACTOR HYDRAULICS 8-11 GPM
Playlist
Who is Value-Leader?
Value-Leader Implements was started in 1995 to provide a high quality high value option to compete with USA tractor dealership branded products. The focus has always been on providing the US consumer with long lasting dependable equipment. This is more value for our customers money.
This is done by always using high quality components and testing the components use in our implements. We also test the finished products for dependability, to make sure that they not only work but, that they last. We strive for our implement to be trouble free, when maintained, for not less than a 5 year period.
Value-Leader was the first USA implement company to offer a two year warranty on tractor implements.
Key Features:
Designed to fit all standard Cat 1 3-point hitches
Works directly from the hydraulics of the tractor. Requires 8-11 Gallons per Minute of hydraulic flow.

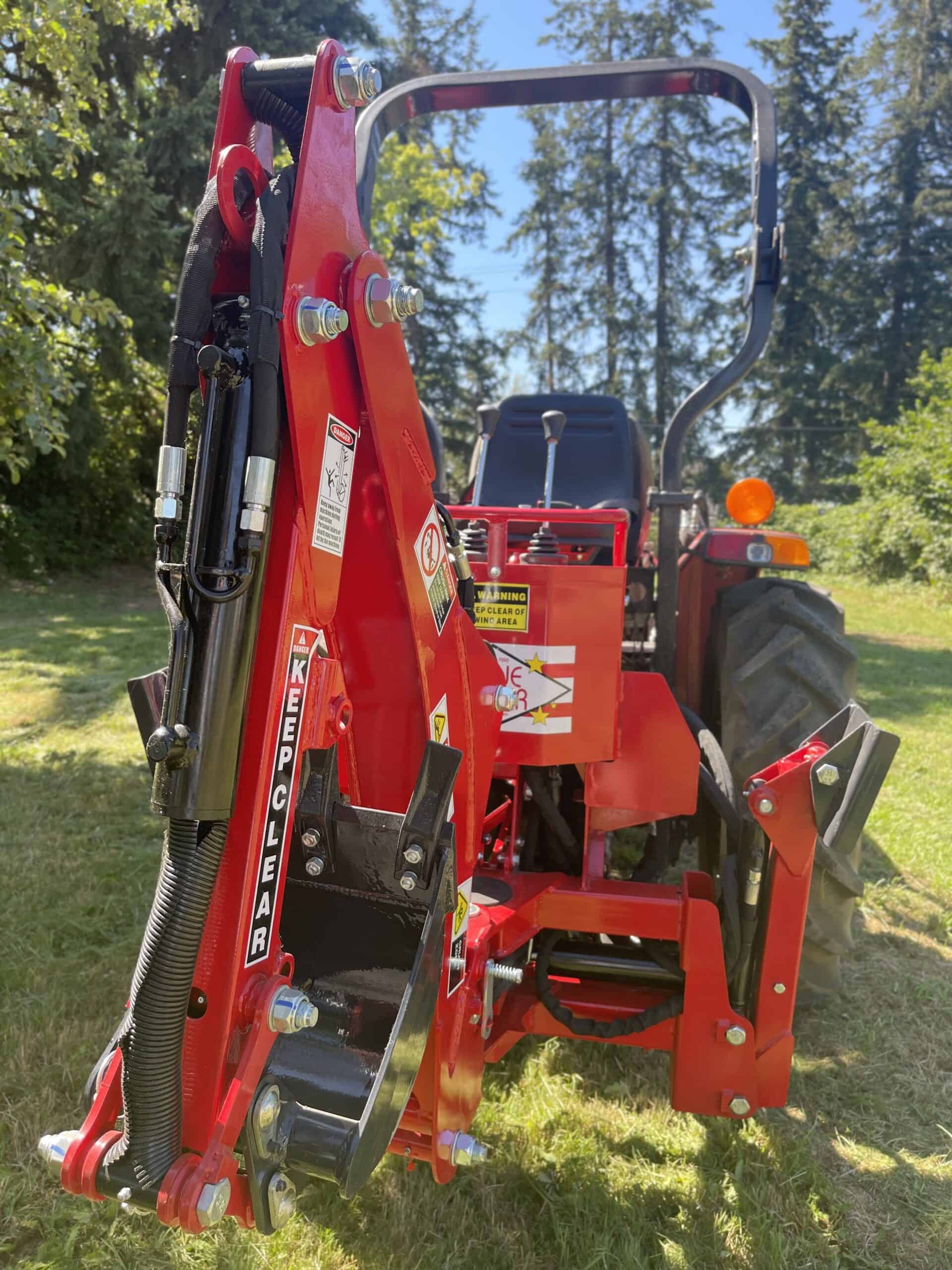

Standard 3 point hook up with a 4th lateral bar for increased stability and proper weight distribution throughout the machines 3 point. Eliminating the need for sub-frame mounting.
All parts and accessories are kept on site.
Bucket sizes ranging from 9” to 12” (subject to availability).

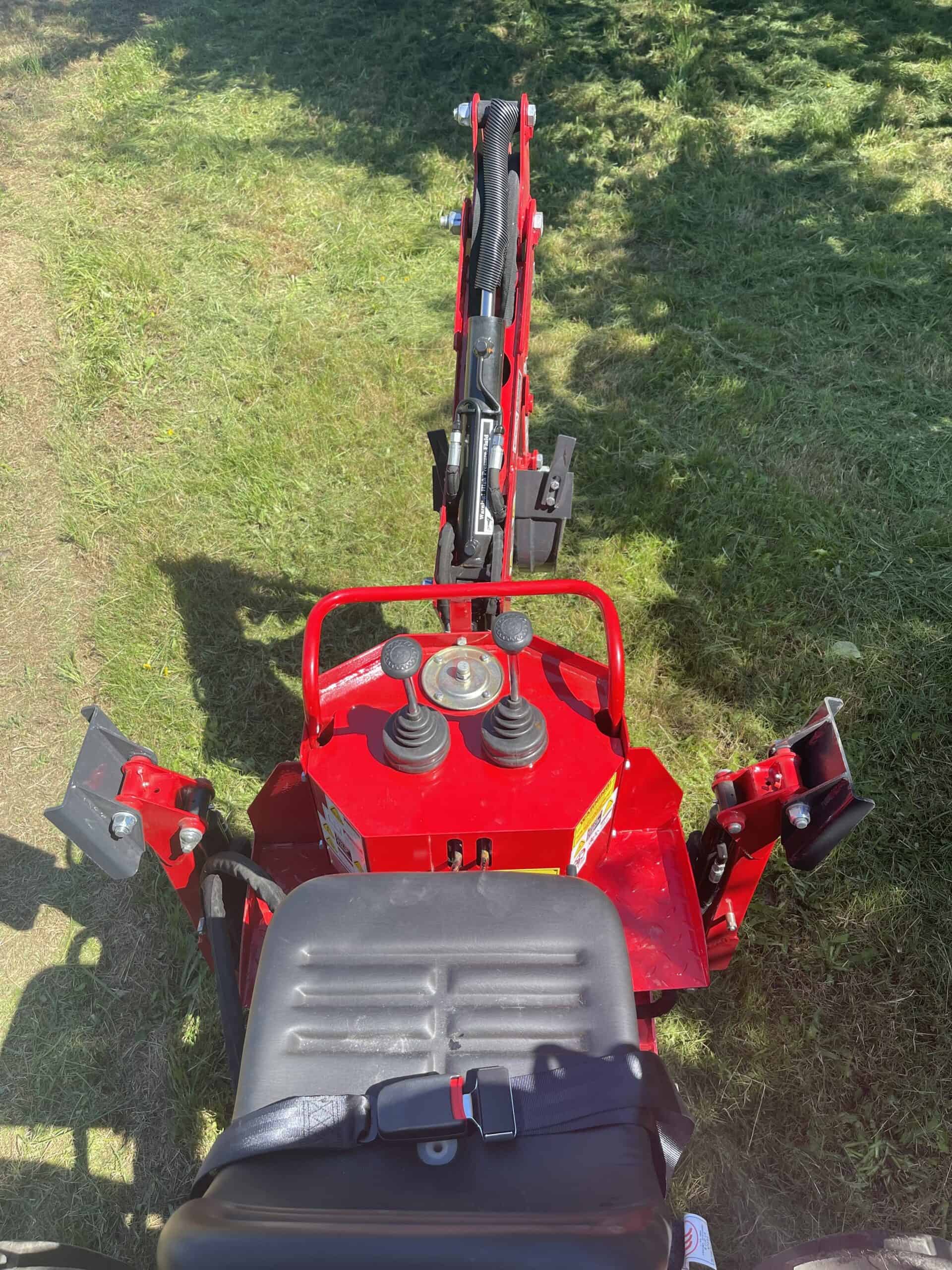

This machine has 4 Joysticks made in ISO calibration. 2 for main operations and the other 2 for operating the stabilizers. SAE control pattern also available.
Manual Thumb and Ripper available (subject of availability).
Backhoe is designed to operate with the tractor set at idle.
Description:
The Betstco Value-Leader backhoe attachments are the ideal blend of power and size, offering a light but strong solution for tackling tough digging tasks. While other backhoe attachments may be heavier in weight, it should be remembered that added weight does not necessarily mean more power or strength. In fact, too much weight can put undue stress on your tractor’s frame.
Manufactured with heavy Q-235 (American standard ASTM A-36) structural steel plate – the strongest plate steel available – Betstco Value-Leader VL-BHMD series backhoe attachments are durable and long-lasting. CNC laser cutting technology is employed to assemble the parts together with precision and precision weld them, contributing to the structural strength of the attachment.
The combination of superior design, high-quality components, and precise manufacturing processes makes Betstco Value-Leader backhoe attachments the value leader for anyone seeking maximum value and performance in a backhoe attachment.
Specifications for Direct Connect Backhoe:
Spec | VL-BHM5D |
Recommended Tractor HP | Sub-compact 18-24 HP |
3 Point Hitch | Cat I & II |
Digging Depth (B) | 4’ – 5’ |
Overall Reach Out (A) | 7’8″ |
Operating Height Up (C) | 8’ 4” |
Dumping Height | 4’ 1” |
Swing Arc (Dual Cylinder) | 160 Degrees |

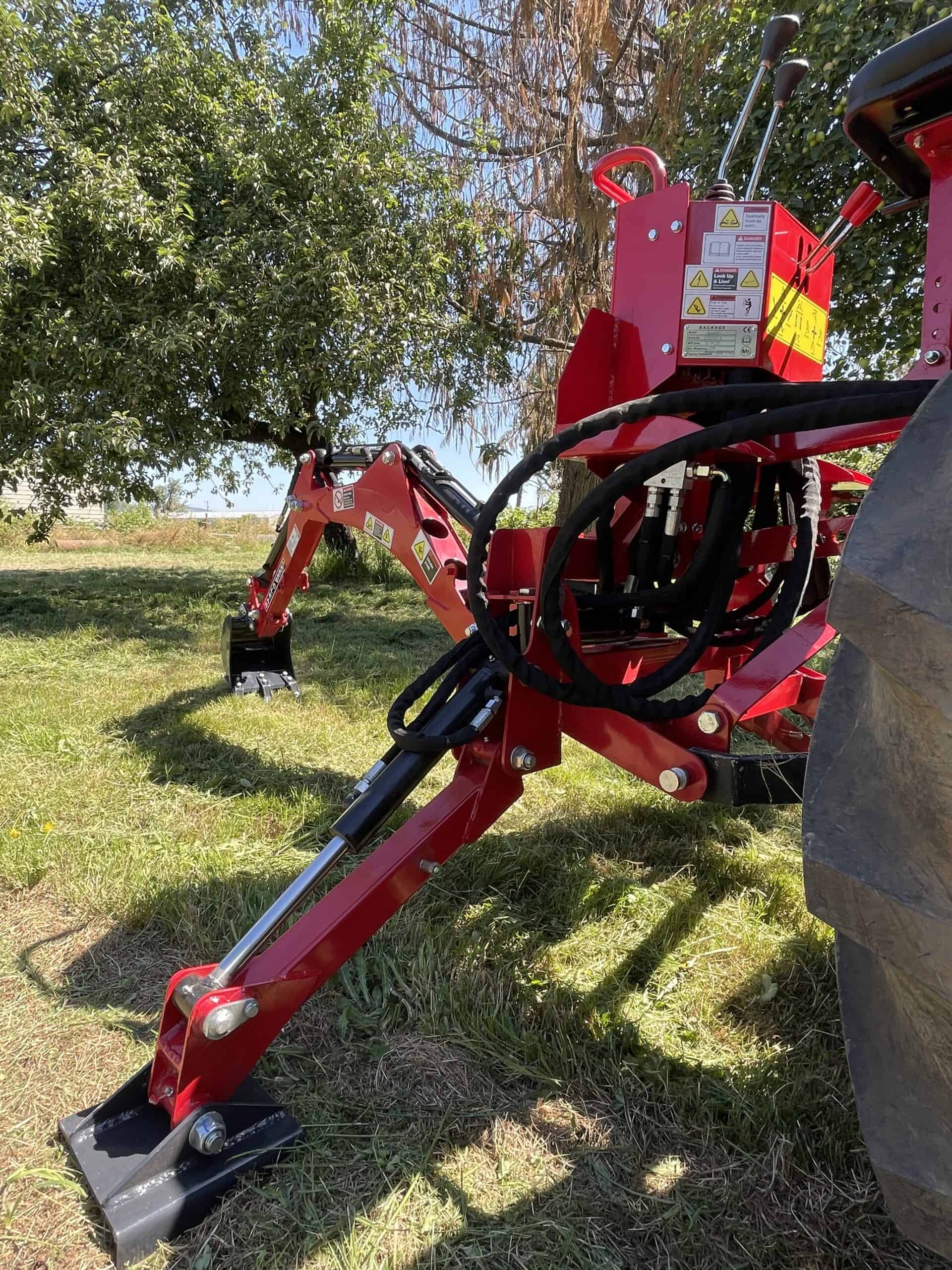

Stabilizer Width | 4’6” (up) 6’10” (down) |
Dipper Boom Digging Force | 880 lbs. |
Bucket Digging Force | 2,204 lbs |
Bucket Lift Capacity Extended | 650 lbs |
Bucket Size Included | 12” – 3 teeth |
Included Bucket Capacity | 0.85 (cu ft) |
Bucket Rotation | 180 degrees |
Cylinder Diameters | 2 1/2” |
Control Valve Type | (2) 4-way & (2) 2-way joystick |
Hydraulic Tank Capacity Hydraulic flow (Gallons Per Minute | 4 Gallon 8-11 GPM |

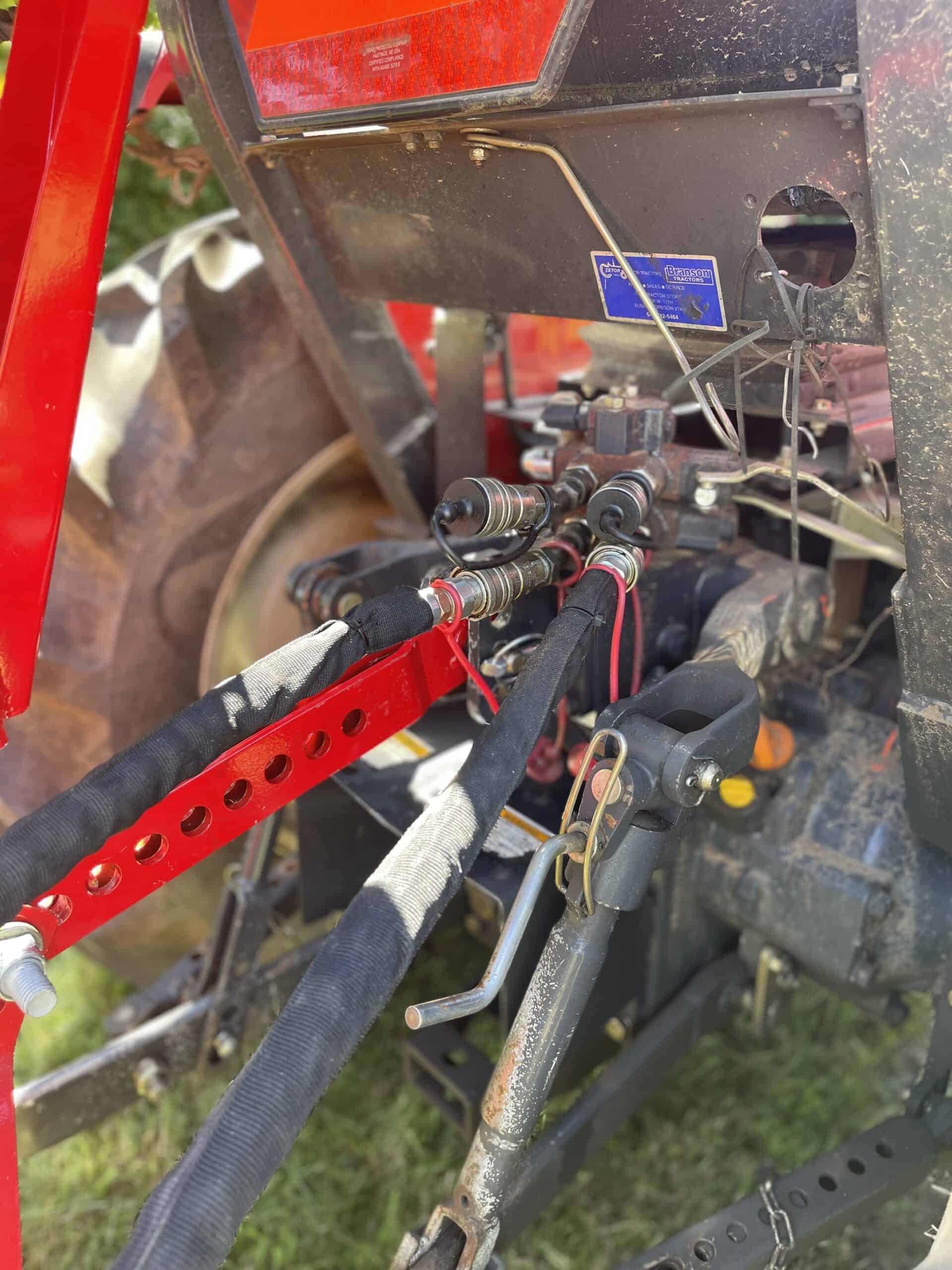

Hydraulic Details Hydraulic connectors | Connects Directly to Tractor Rear Hydraulics ½” male quick connect fittings |
Optional Bucket Sizes | 7”, 9”, 16” |
Weight | 575 lbs. |
Crated Weight | 720 lbs |
