Value-Leader VL-WC52R 5” Wood Chipper
Feed is:
Gravity Pinch/Pull
Powered By:
Tractor PTO
18- 55 HP
Playlist
Who is Farmer-Helper?
Farmer Helper Machinery Co., Ltd (FHM) was established in 2009. The factory area is more than 20,000 square meters and houses 4 Metal laser cutting machines and more than 80 processing machines.
FHM manufactures a full range of high-quality implements for small to medium-sized tractor owners across the world. Farmer’s Helper has become an integral manufacturing premise for agricultural machines. Our team’s priority is customer success and satisfaction. We constantly improve our machines to meet customer demands and expectations.

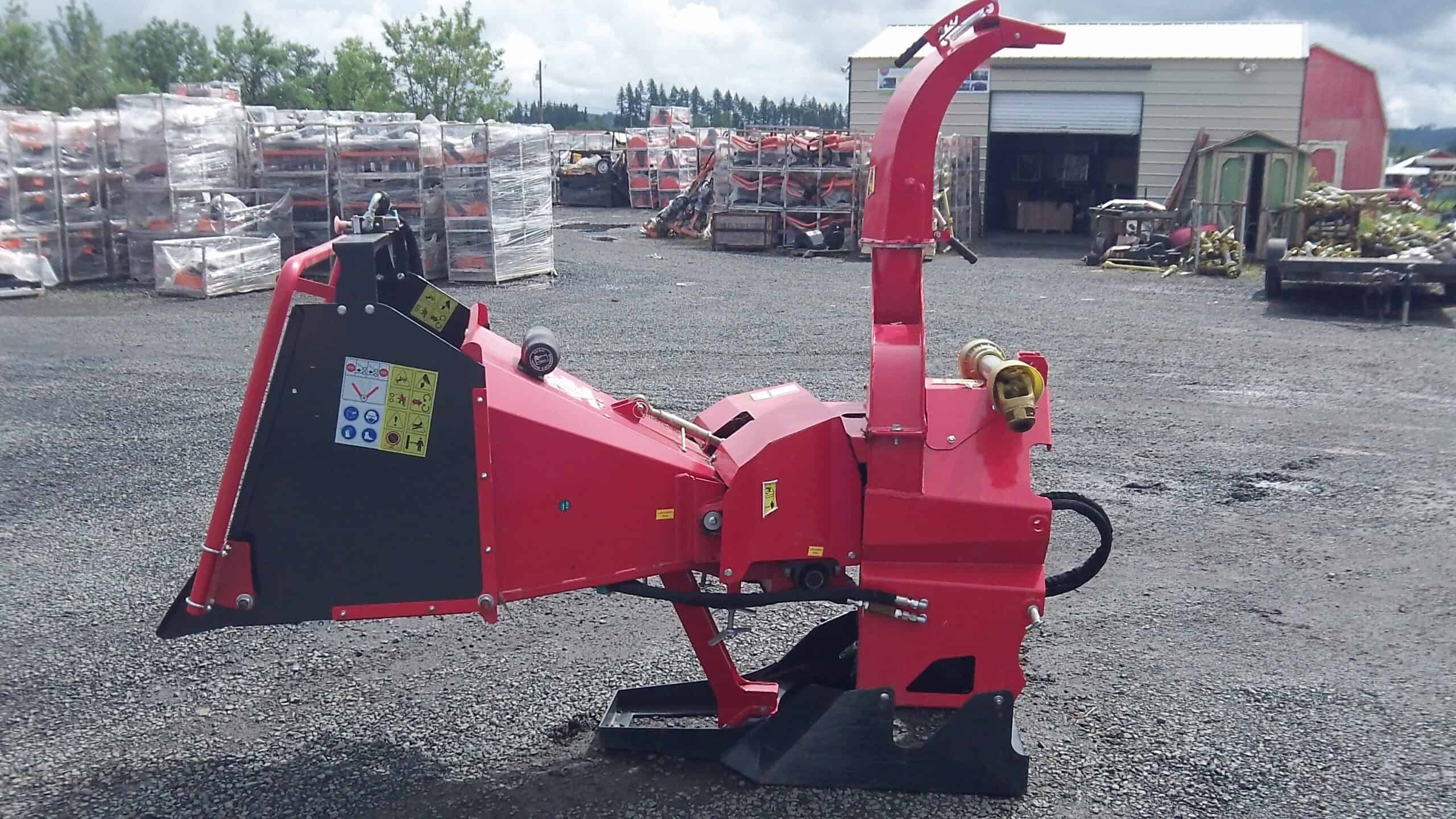

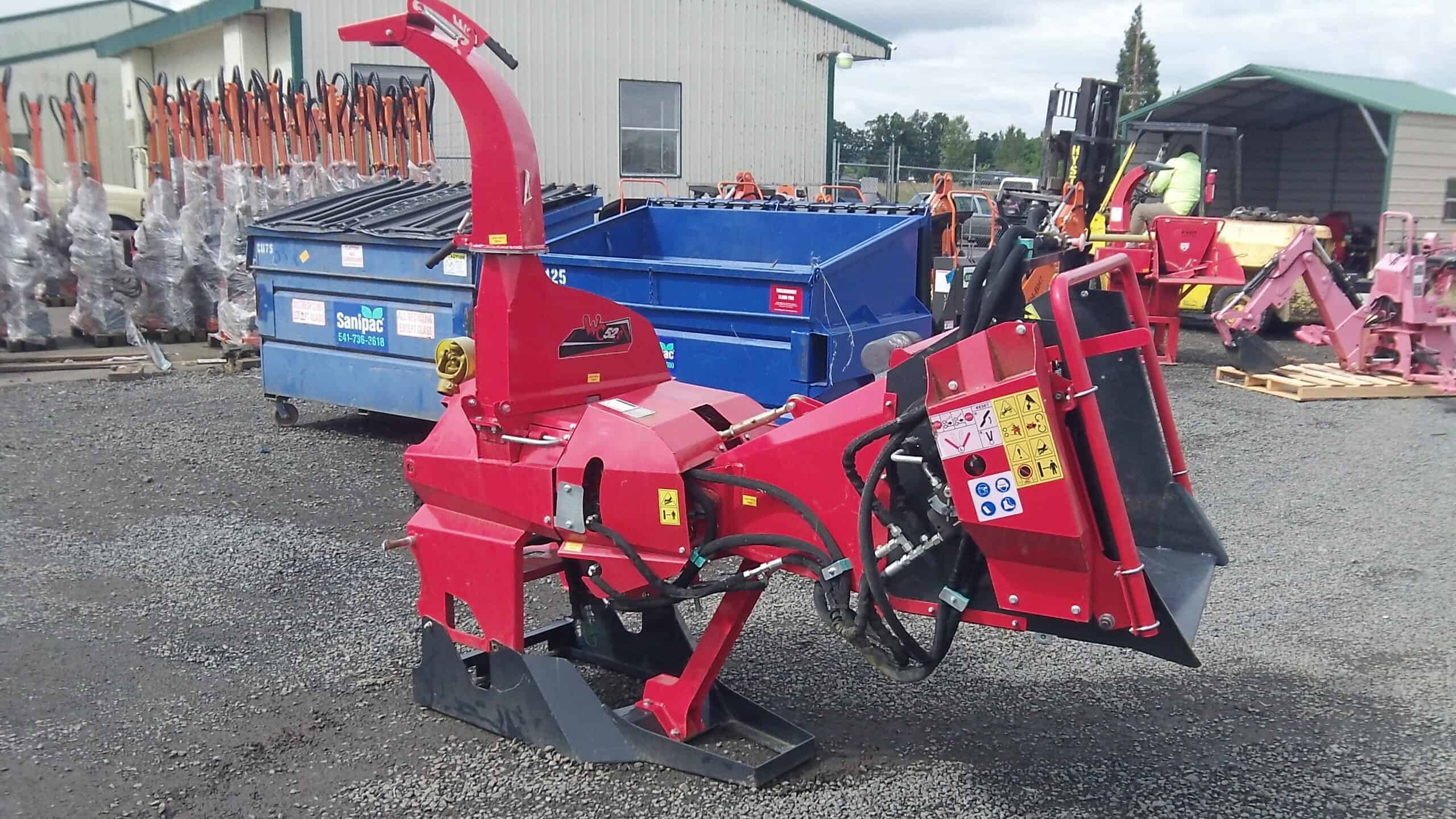

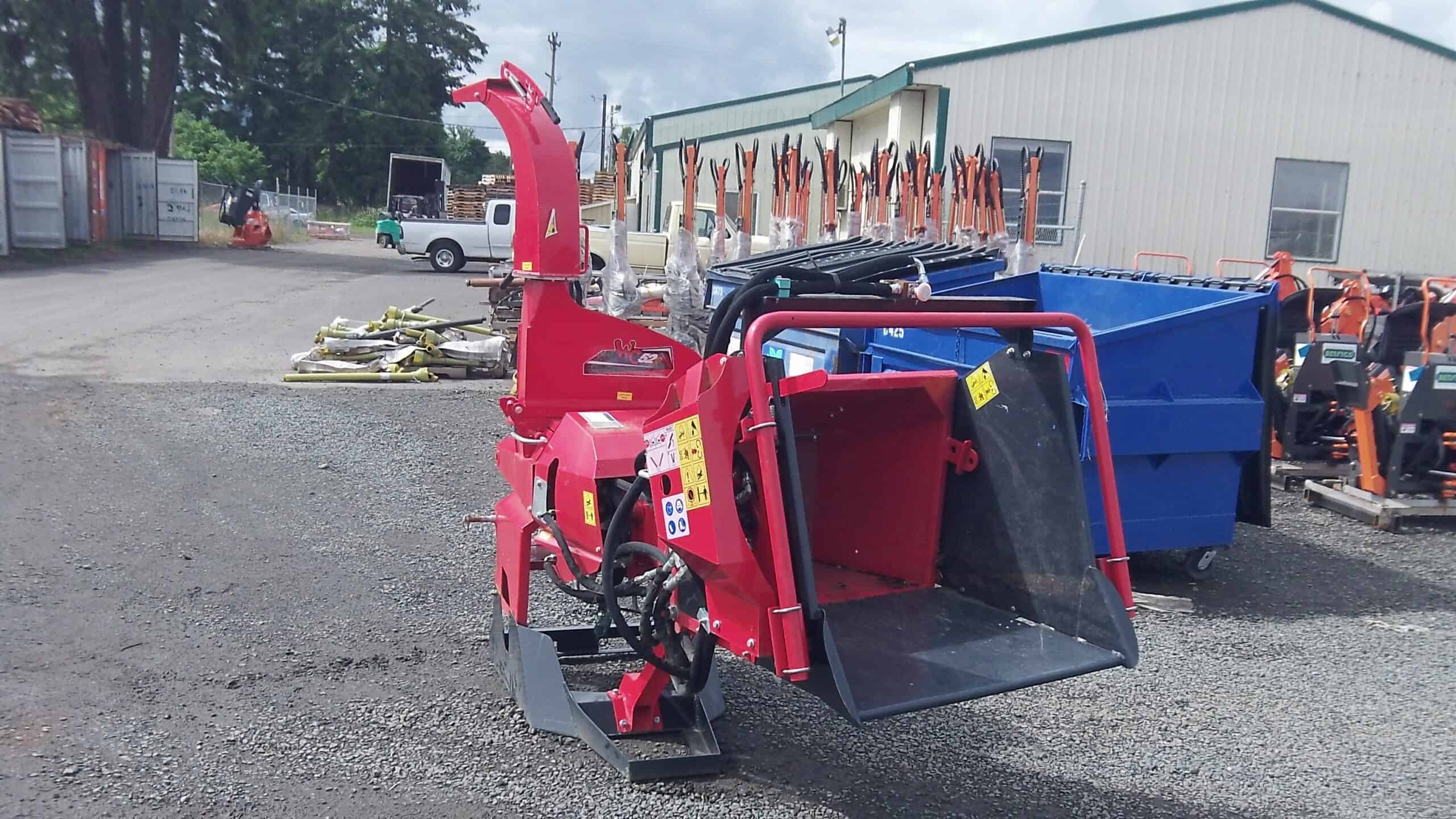

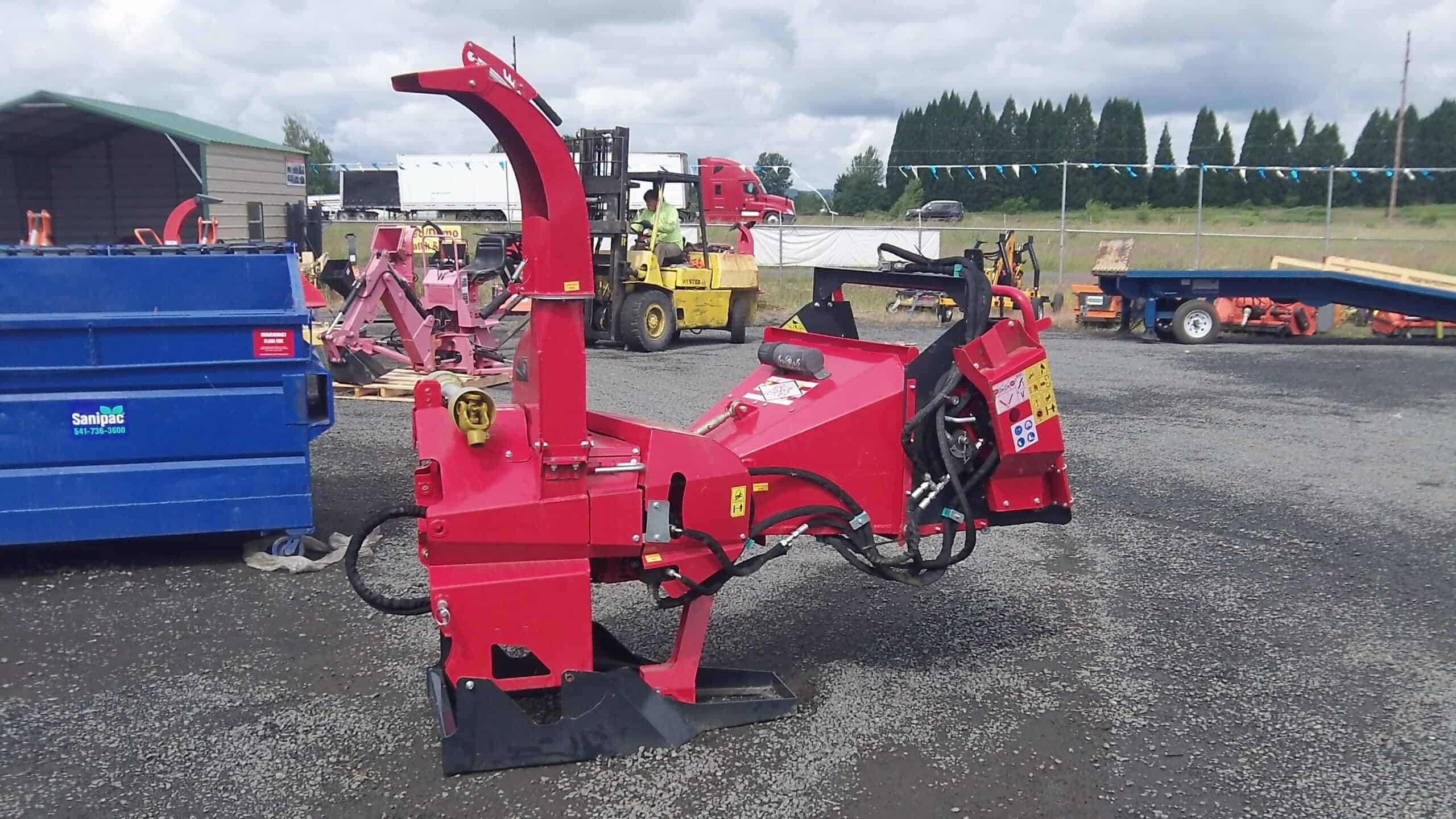

The WC52R is a PTO-powered wood chipper with 5″ capacity and hydraulic feed. The unit can be mounted on a Cat I or Cat II three-point hitch. This unit is particularly suited for production-style chipping. The heavy-duty hydraulic feed gives the operator the ability to release the logs, and grab a new one for constant non-stop chipping. The hydraulic feed includes a forward and reverse to shatter any limbs that get caught.
- 5″ Diameter wood chipper

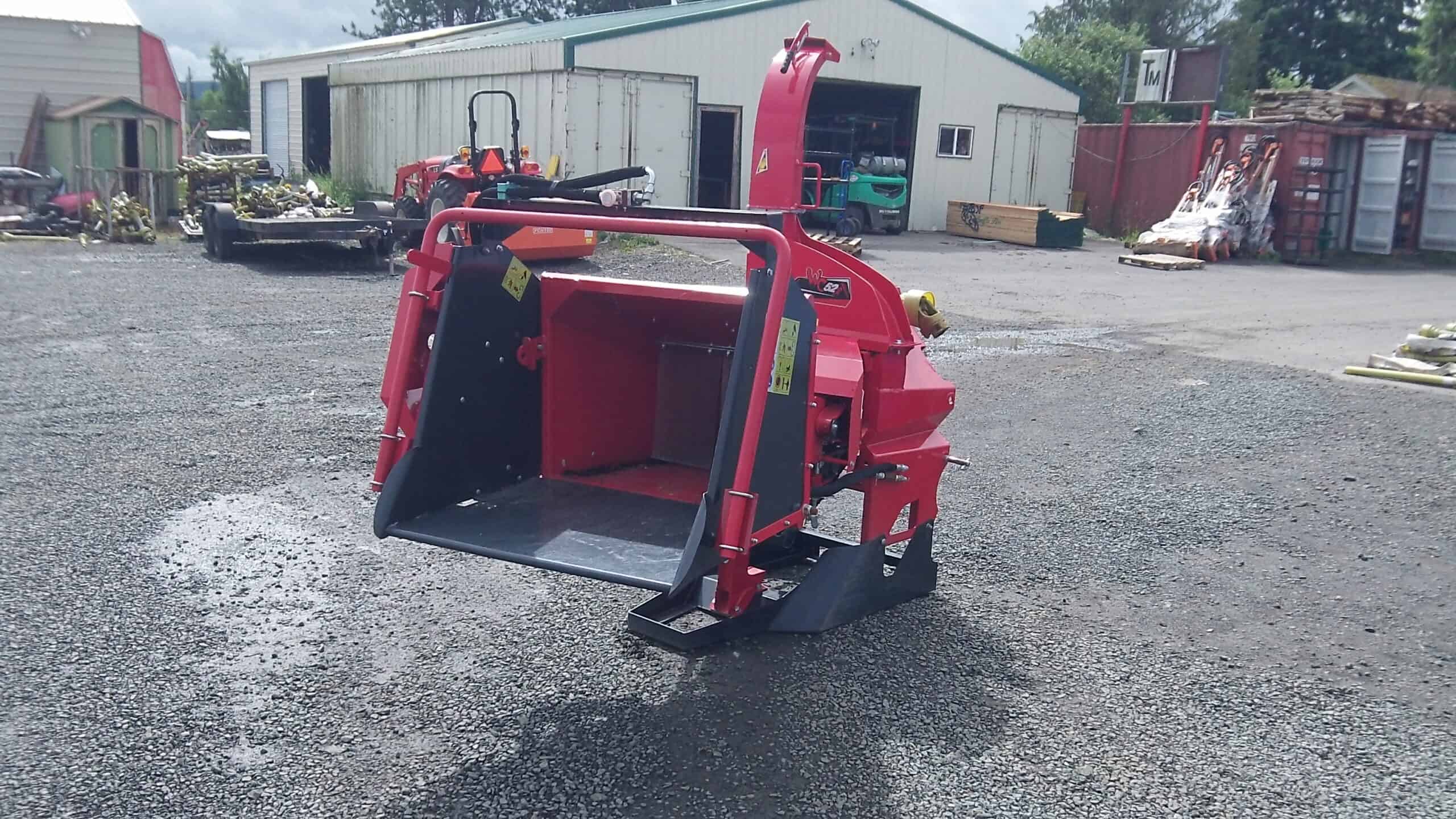

- Hydraulic Feed Hopper
- PTO Driven Wood Chipper
- 3 Point Hitch Cat I & II (Match & Quick Hitch compatible)
| Model | WC52R | |
| Specification | Inch | Metric |
| Dimensions (L/W/H) | 62″ X 61″ x 74″ | 1574 mm X 1549 mm X 1879 mm |
| Rotor Knives | 4 | 4 |
| Rotor Size | 24.75″ | 628 mm |
| Rotor Weight | 132 lbs | 59.8 kg |
| Chipper Capacity | 5.2″ | 132 mm |
| Hydraulic Flow | 3 – 6 gpm | 3 – 6 gpm |
| Chipper Housing Opening | 5″ x 10″ | 127 mm X 254 mm |
| Hopper Opening | 30″ X 42″ | 762 mm X 1066 mm |
| Discharge Hood Rotation | 270 degrees | 270 degrees |
| Discharge Hood Height | 74″ | 1879 mm |
| PTO RPM | 540 r/min | 540 r/min |
| Tractor HP | 18 – 55 HP | 18 – 55 HP |
| Weight | 855 lbs | 388 kg |
